PRODUCTS

Medium to high-end intelligent equipment service provider

Vertical Type Machining Center

VMC-1165H Comprehensive machining center

VMC-1165H Comprehensive machining center

Top 'high rigid structure design' with high speed, robustness and extraordinary efficiency

1:The product is constantly being developed and updated,and the latest information shall prevail.

2:The product parameters are standard configurations.For other configurations,please call to inquire.

Order Hotline:+86 136 8667 3830
  • Product Parameters

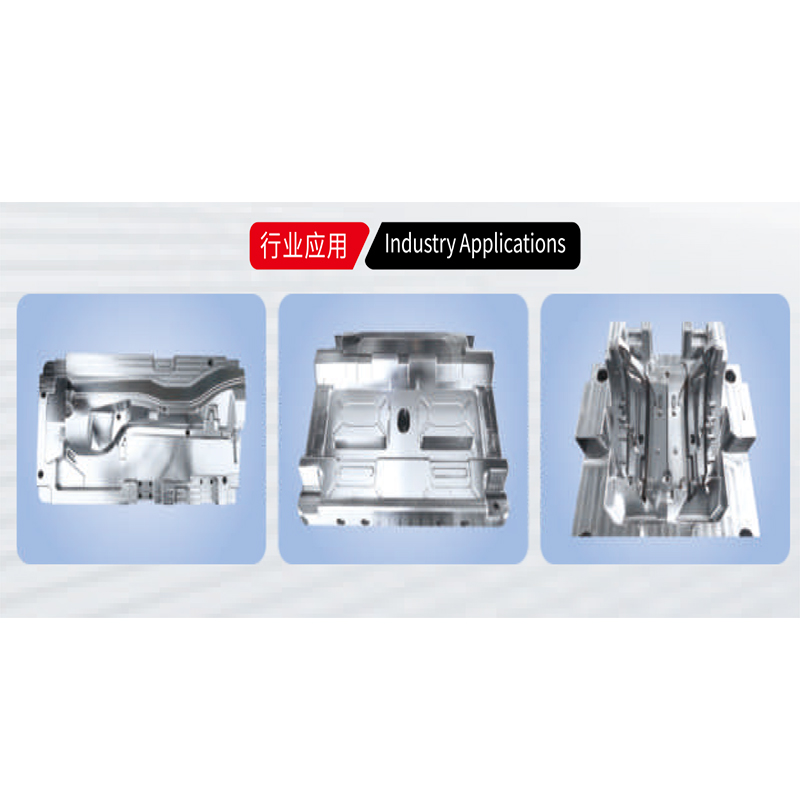

  • Application Area
  • Product Characteristics
  • Processing Workpiece


Item

Spec.

unit

value





Travel

X/Y/Z axis travel

mm

1100/650/600

Distance from Spindle nose to the top of the worktable

mm

130-730

Distance from Spindle center to the surface of column guideway

mm

650

Rail type


linear rail



Worktable

sizeL*W)

mm

1200*600

Max load

kG

800

T-slot

Qty-width *pitch

5Pcs-18*100mm



Spindle

Spindle taper/bore

mm

BBT40/φ155

Max Speed

Rpm

12000

Transmission mode of spindle


Direct drive



Feed

X/Y/Z axis rapid displacement

M/min

36/36/36

Max feeding rate

mm/min

10000







Auto Tool Magazine

Exchanging type


Round disc typed

Spec. of tool Stock

Type

BBT40/BT40

Tool Library Capacity

PCs

24T

Max diameter of tool(with neighbor tool)

mm

105

Max diameter of tool(no neighbor tool)

mm

200

Max length of single tool

mm

350

Max load of single tool

KG

15

Exchange time

Sec

4





Motor

Spindle motor

kva

11/15

Axis x/y/z

kw

3/3/3

Coolant pump capacity

m3/h

4-60

Accuracy

Positioning accuracy

mm

±0.005/300

Repeatable positioning accuracy

mm

±0.003/300

Power/Air supply

Power Input

KVA

25

Compressed air

Kg/c㎡

6-8

Machine Overall

Machine Dimension(L*W*H )

MM

2500*2400*2400

Machine Weight

T

6

The specifications of this machine are subject to change without prior notice as the quality improves. Taijet reserves the right of final interpretation. For more information, please contact the corresponding sales staff.
